Sitemap

“fastn Sitemap” is the structure we recommend for sites. This recommendation is optional, you can create any sitemap you want for your site.

The Structure

A site should have “sections” on top level. Each section should ideally be listed in the header of the site.
Each section may have one or more sub-sections. Sub-section should be listed as second level navigation in the header of the site. Each sub-section has one or more documents organised in a “table of content”, and TOC should be shown on the leds.

How To Configure Sitemap For Your Site

FASTN.ftd contains the sitemap of your site.
Sitemap Example (in FASTN.ftd)
-- fastn.sitemap:

# Section: /section/url/
nav-title: Optional Longer Section

# If Section: Has A Colon In The Name
url: sectionURL

## Sub Section: /sub/url/
nav-title: Longer Sub Section

## If Sub Section: Has A Colon In The Name
url: whatever

- ToC Item: toc/
  nav-title: Shorter title
Lang:
ftd
Note: The URLs in sitemap start with slash, but we remove the first slash. We do this because some projects may deploy fastn package on a base URL eg, foo.com/bar/, so all reference to /x/ is actually a reference to foo.com/bar/x/. We also convert / to index.html for the same reason.

Sitemap $processor$

We have $processor$ called sitemap, which can be used to get sitemap data:
$processor$: sitemap
-- import: fastn/processors as pr

-- pr.sitemap-data sitemap:
$processor$: sitemap
Lang:
ftd
Consider a package contains the following sitemap
In FASTN.ftd
-- fastn.sitemap:

# Section Title: /


## Subsection Title: /

- Toc Title: /
- Toc Title 1: /foo/
  - Bar Title: /bar/


## Subsection Title 2: subsection2/

- Other Toc Title: subsection2/foo/



# Second Section Title: section/

## Second Subsection Title: second-subsection/

- Second Toc Title: second-toc/
Lang:
ftd
Now, for the sitemap processor in the document with id bar/ would return the value
sitemap for bar/
{
  "sitemap": {
    "sections": [
      {
        "title": "Section Title",
        "url": "/",
        "is-active": true,
        "children": []
      }
    ],
    "subsections": [
      {
        "title": "Subsection Title",
        "url": "/",
        "is-active": true,
        "children": []
      },
      {
        "title": "Subsection Title 2",
        "url": "subsection2",
        "is-active": false,
        "children": []
      }
    ],
    "toc": [
      {
        "title": "Toc Title",
        "url": "",
        "is-active": false,
        "children": []
      },
      {
        "title": "Toc Title 1",
        "url": "foo/",
        "is-active": true,
        "children": [
          {
            "title": "Bar Title",
            "url": "bar/",
            "is-active": true,
            "children": []
          }
        ]
      }
    ]
  }
}
Lang:
json

Missing Sub Section

If a TOC comes directly in a section, the section would have a single anonymous sub-section, and this sub-section would not be shown in UI. In UI people will just see the section header and toc on left, no sub-section line.
TOC directly after section
# Section Title: section/

- Toc 1: toc/
  - Toc 2: toc2/
Lang:
ftd

fastn Build Behaviour

If a document is not part of sitemap, it will be built as is built right now. All documents that are part of sitemap are built in a special way.

fastn build will first parse the sitemap and build all the URLs that are not part of it, and then in another pass build all the ones that are in it.

A document can appear in multiple places in sitemap, in that case fastn builds one HTML file for each time a ftd document appears in sitemap.

Note: A document can appear only once in a single TOC?

Canonical URL

If a ftd document appears multiple times in sitemap, one of them would be the canonical, the “main” URL.

Consider the following example:

Suppose foo.ftd has to be appeared more than once in the sitemap. The sitemap can include this document as foo/, this is the “main” URL. The other way to include it is by passing url something like this. foo/-/<something>/. The -/ is the pointer to get the document. Anything preceding -/ would be the document id. The generated html of this document will include the canonical url pointing to foo/.

document-metadata: Key Value Data in Sitemap

Document can use get-data processor to get value of any key specified in the sitemap. Since a document would get rendered once for each occurrence of the document in the sitemap, each occurrence can have different data and the occurrence specific data would be returned by get-data.

The document-metadata supports inheritance. This means that the document-metadata presents in section get passed to it’s subsection and TOCs. Similarly, subsection document-metadata get passed to TOCs. And also the parent TOC-item’s document-metadata get passed to its children TOC.
# name: section/url/
key1: value1
key2: value2

## sub name: subsection/url/
key3: value3

- toc/url/
  key4: value4
  - childtoc/url/
    key5: value5
Lang:
ftd
In the above example, the section/url/ section have two document-metadata key1: value1 and key2: value2 The subsection/url/ subsection have three document-metadata where two are inherited from section. i.e. key1: value1, key2: value2 and key3: value3 The toc/url/ toc item have four document-metadata, where three are inherited from section and subsection. i.e. key1: value1, key2: value2, key3: value3 and key4: value4 The childtoc/url/ toc item have five document-metadata, where four are inherited from section, subsection and it’s parent TOC. i.e. key1: value1, key2: value2, key3: value3, key4: value4 and key5: value5

Variable can be changed based on document-metadata

Using the get-data, the title can be different:
-- boolean show-dev-info:
$processor$: get-data

-- string page-title: The Normal Title

-- page-title: The Dev Title
if: $show-dev-info

-- ds.h0: $page-title
Lang:
ftd
sitemap
-- fastn.sitemap:

# Overview

- foo/

# Development

- foo/-/1
  show-dev-info: true
Lang:
ftd

Including Documents From Other fastn Packages In Sitemap

A package foo.com can chose to include a document in bar.com by including it in sitemap.
-- fastn.sitemap:

- Intro: -/bar.com/intro/
Lang:
ftd

In this case the file would get copied over, and the url of intro would be https://foo.com/-/bar.com/intro/. For dependent packages, the url should start with -/ and then the package name, following the document id.

The document from dependent package can be included more than once. This can be achieved in the same manner as the document in the current package included more than once, which is mentioned earlier.

Consider the example below:
-- fastn.sitemap:

- Intro: -/bar.com/intro/-/main/
Lang:
ftd
So the document intro.ftd in the package bar.com is included in the sitemap with the variant main. The generated HTML includes the canonical url with value as bar.com/intro

Linking using id

There are several different ways by which the user can link sitemap titles to different components (present within the same package) using id.

By directly using <id> as title

In this case, the displayed title will be same as the <id> itself which will link to the component having id: <id> within the same package. If the user wants the title to be different from <id>, then he/she should use any of the other two methods mentioned below.
-- fastn.sitemap:

# foo

## foo2

- foo3
Lang:
ftd
In the above example, foo, foo2 and foo3 are different component id’s (within the same package). Here the section title foo will be linked to component having id: foo (if present within the same package). Similarly, the subsection title foo2 and ToC title foo3 will be linked to their corresponding components having id: foo2 and id: foo3 respectively.
-- fastn.sitemap:

# Section: foo

## Subsection: foo2

- ToC: foo3
Lang:
ftd
In the above example, foo, foo2 and foo3 are different component id’s (within the same package). The Section title will be linked to the component having id: foo. Similarly, the Subsection and ToC titles will be linked to the components having id: foo2 and id: foo3 respectively.
-- fastn.sitemap:

# Section:
  id: foo

## Subsection:
  id: foo2

- ToC:
  id: foo3
Lang:
ftd
In the above example, foo, foo2 and foo3 are different component id’s (within the same package). The Section title will be linked to the component having id: foo. Similarly, the Subsection and ToC title will be linked to the components having id: foo2 and id: foo3 respectively.

Skip Header

skip: true

Motivation Behind skip Header

If people want to draft something and don’t want to publish any section, sub section or toc, they can use skip in section, sub-section and toc header.

The skipped section, sub-section or toc would not be available in processor sitemap till it is not the active opened page.

Value of skip will be true if url contains dynamic parameters.

skip in Section

We have header called skip(by default false), using this header we can skip the whole section.
-- fastn.sitemap:

# Section 1: /

## Section 1 Subsection 1: /subsection1

## Section 1 Subsection 2: /subsection2

# Section 2: /
skip: true

## Section 2 Subsection 1: /subsection1

## Section 2 Subsection 2: /subsection2
Lang:
ftd
In this case, Whole Section 2 will be skipped and will not displayed.
Page without skip header

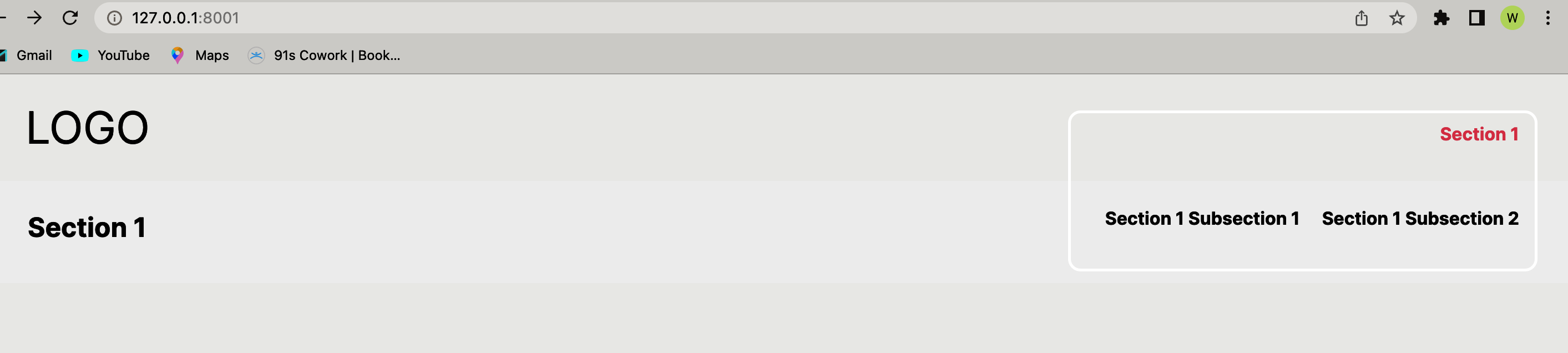

Page with skip header

skip in Subsection

We have header called skip(by default false), using this header we can skip the whole subsection.

In the below example Subsection 1 of Section 1 and Subsection 2 of Section 2 will be skipped
-- fastn.sitemap:

# Section 1: /

## Subsection 1: /subsection1
skip: true

## Subsection 2: /subsection2

# Section 2: /

## Subsection 1: /subsection1
skip: true

## Subsection 2: /subsection2
Lang:
ftd

skip in ToC

We have header called skip(by default false), using this header we can skip the whole toc.

In the below example, ToC 3 and ToC 5 will be skipped.
-- fastn.sitemap:

# Section: /

## Subsection : /subsection

- ToC 1: /page1
- ToC 2: /page2
  - ToC 3: /page3
  skip: true
  - ToC 4: /page4
- ToC 5: /page5
skip: true
- ToC 6: /page6
Lang:
ftd

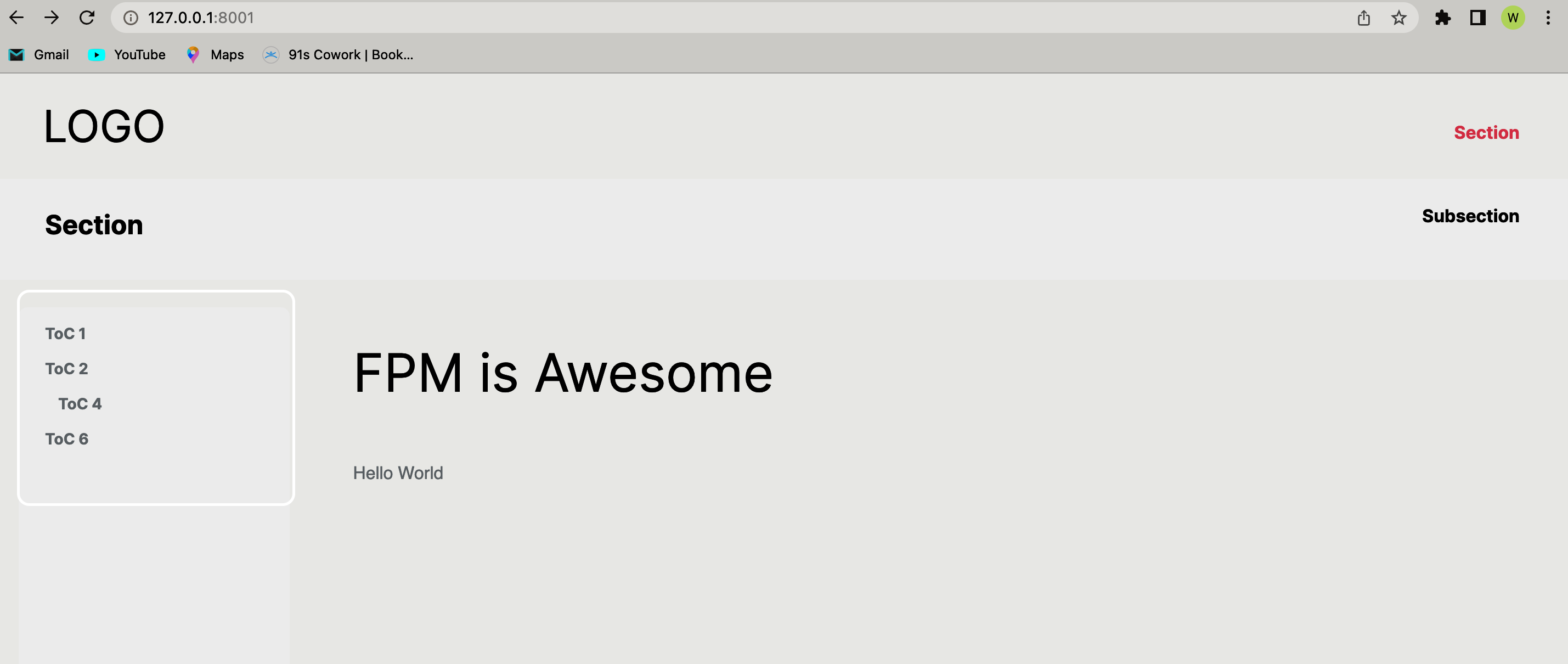

skip ToC Header

Custom URL Support in Sitemap

You can define document key in Sitemap’s section, subsection and toc.

In the below example, If request come for /section/ so document section-temp.ftd will be served. If request come for /sub-section/ so document sub-section.ftd will be served. If request come for /toc1/ so document toc-temp.ftd will be served.
FASTN.ftd
-- fastn.sitemap:

# Section: /section/
  document: section-temp.ftd

## SubSection: /sub-section/
  document: sub-section.ftd

- Toc 1: /toc1/
  document: toc-temp.ftd
Lang:
ftd

Dynamic Urls

You can define url like url: /<string:username>/foo/<integer:age>/ in dynamic-urls. With this configuration you have to also define [document](id: sitemap-custom-url).

In the below example if request come for urls so they will be mapped accordingly
  • /amitu/manager/40/ -> person-manager.ftd
  • /arpita/manager/28/ -> person-manager.ftd
  • /abrark/employee/30/ -> person-employee.ftd
  • /shobhit/employee/30/ -> person-employee.ftd
  • /abrark/task/30/ -> task-type-1.ftd
  • /abrark/task2/30/ -> task-type-2.ftd
FASTN.ftd
-- fastn.dynamic-urls:

# Manager
url: /<string:username>/manager/<integer:age>/
document: person-manager.ftd

## Employee
url: /<string:username>/employee/<integer:age>/
document: person-employee.ftd


- Task1
  url: /<string:username>/task/<integer:age>/
  document: task-type-1.ftd

  - Task2
    url: /<string:username>/task2/<integer:age>/
    document: task-type-2.ftd
Lang:
ftd

Syntax

Syntactically, You can customize your urls same as sitemap. One section #, Title, url and document is mandatory.

Note: -- fastn.sitemap: will not contain any urls with dynamic parameters, and -- fastn.dynamic-urls: will not contain any urls without dynamic parameters.

Examples

One url entry only with single section.
FASTN.ftd
-- fastn.dynamic-urls:

# Manager
url: /<string:username>/manager/<integer:age>/
document: person-manager.ftd
Lang:
ftd
One url entry only with one section and one toc item.
FASTN.ftd
-- fastn.dynamic-urls:

# Manager
url: /<string:username>/manager/<integer:age>/
document: person-manager.ftd
readers: readers
writers: writers
- Task1
  url: /<string:username>/task/<integer:age>/
  document: task-type-1.ftd
  readers: readers
  writers: writers
Lang:
ftd
